2 to 2 - 4800 (baud)
3 to 1 (1 stop bit)
4 to 0 (no parity)
5 to 1 (even parity)
6 to 3 (8 data bits)
7 to 5 (any two characters ends transmission)
11 to 3 (DC Codes)
12 to 0 (no DC Code Parity)
13 to 3 (DC2/DC4 output)
14 to 1 (CR output)
15 to 0 (ISO output)
18 to 0 (no vertical parity check)
19 to 600 (Com timeout)
Basic Communication
1.01- Port Type: Standard
1.11- Baud: 4800
1.12- Data Bits: 7
1.13- ASCII Even
1.14- Stop Bits: 2
1.15- Handshake: XON/XOFF
Sending Options
2.11- Leader: %<10>
2.12- Trailer: %
2.23- Skip lines that contain: %
2.31- Automatic timeout: 7
Receiving Options
3.11- Program identifier 1: O
3.12- Program Identifier 2:
3.21- Receive timeout: 3
3.31- Ignore data before first end-of-block: True
3.32- Ignore data after last end-of-block: True
Remote Commands
4.02- Request for file command: GET-
4.03- Request for file command (drip feed): DNC-
4:11- Request to save command: PUT-
Changing CNC Parameters:
On the RS232 parameter page, choose the device column you are going to use for your PC and make sure the following settings apply:
Outputting CNC Programs:
1. Press DATA IN/OUT softkey.
2. Press OUTPUT softkey.
3. Type in 1 for part program.
4. Type in program number.
5. Press INPUT.
Inputting CNC Programs:
1. Press DATA IN/OUT softkey.
2. Press INPUT softkey.
3. Press DATA I/O softkey.
4. Press INPUT.
HOW TO STOP MITSUBISHI FROM STRIPPING SPACES ON INPUT/OUTPUT
Set bit 6 of mpar1 to 1 (VALID)
See page App 1-11 (APPENDIX 1, PAGE 11)
Bit 6 on that page says “Work Programs Space is enabled”
Parameter is in Base Spec Parameters, named mpar1.
Will still strip spaces from the comment on the O-Program number line.

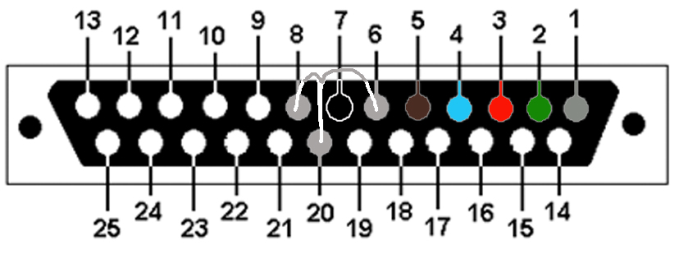

Pinout includes RTS/CTS Handshaking
|
DB-9 com port |
Wire color |
DB-25 CNC |
Jumper? |
|
(Disconnected) |
Shield |
1 |
|
|
2 (Receive Data) |
Green |
2 (Transmit Data) |
|
|
3 (Transmit Data) |
Red |
3 (Receive Data) |
|
|
5 (Signal Ground) |
Black |
7 (Signal Ground) |
|
|
7 (RTS) |
Brown |
5 (CTS) |
|
|
8 (CTS) |
Blue |
4 (RTS) |
|
|
|
|
6 (DSR) 8 (DCD) 20 (DTR) |
JUMPER |
