CNC Parameters

Machine Parameters for Dataline:
Marriage Parameter:

150 = 0 (NO PARITY)

151 = 10 (4800)

152 = 0 (1 stop bit)

FactoryWiz DNC Settings

Basic Communication

1.01- Port Type: Standard

1.11- Baud: 4800

1.12- Data Bits: 7

1.13- ASCII Even

1.14- Stop Bits: 1

1.15- Handshake: RTS/CTS

1.16- Handshake Send Signal: CTS

Sending Options

2.11- Leader: <0><0><0><0><0><0><0><0><0><0><0><0><0>%

2.12- Trailer: %<0><0><0><0><0><0><0><0><0><0><0><0><0>

2.23- Skip lines that contain: %

2.31- Automatic timeout: 7

Receiving Options

3.11- Program identifier 1: O

3.12- Program Identifier 2:

3.21- Receive timeout: 3

3.31- Ignore data before first end-of-block: True

3.32- Ignore data after last end-of-block: True

Remote Commands

4.02- Request for file command:

4.03- Request for file command (drip feed):

4:11- Request to save command:

Additional Notes

Changing CNC Parameters:

Locate PRC board in card rack.

Put switches in these positions:

SSW1 = Off SSW2 = ON SSW3 = OFF SSW4 = OFF

Press INT.

On the Control screen, the Maintenance screen should be displayed.

Select MAR PARAM to display the marriage parameters.

Press the ADVANCE button until the correct marriage parameter is on the screen.

Type in the new value, and press ENTER.

Press Terminate to end the Marriage Parameter screen.

To exit the Maintenance mode, on the PRC board, put all SSW switches to the off position.

Then, press STEP, RST, and RUN on the PRC board.

Outputting CNC Programs:

Press TERMINATE

Press PGM CONT

Press TAPE

Press STORE (pressing TAPE then STORE prevents “Input Unaligned” error.

Press PGM COPY

Press DATA LINE

Verify RS358 is displayed, if it is not, press RS244.  This changes to RS358

Press EDIT ACT (puts * to output edited information)

Press START.

Inputting CNC Programs:

Press TERMINATE

Press PGM CONT

Press TAPE

Press DATA LINE (pressing TAPE then DATA LINE prevents “Input Unaligned” error.

Press PGM COPY

Press STORE

Type in program name, and press ENTER.

Press START.

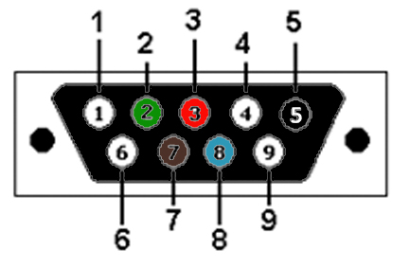

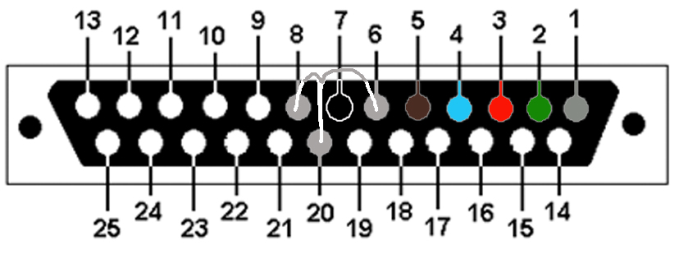

Wiring Diagram

Pinout includes RTS/CTS Handshaking

	DB-9 com port	Wire color	DB-25 CNC	Jumper?
	(Disconnected)	Shield	1
	2 (Receive Data)	Green	2 (Transmit Data)
	3 (Transmit Data)	Red	3 (Receive Data)
	5 (Signal Ground)	Black	7 (Signal Ground)
	7 (RTS)	Brown	5 (CTS)
	8 (CTS)	Blue	4 (RTS)
			6 (DSR) 8 (DCD) 20 (DTR)	JUMPER
