CNC Parameters

Machine Parameters for Dataline:

Baud Rate = 4800

Parity = NONE

Data Bits = 8

Stop Bits = 1

Protocol Level = 1

FactoryWiz DNC Settings

Basic Communication

1.01- Port Type: Standard

1.11- Baud: 4800

1.12- Data Bits: 8

1.13- ASCII None

1.14- Stop Bits: 1

1.15- Handshake: RTS/CTS

1.16- Handshake Send Signal: CTS

Sending Options

2.11- Leader: <0>%<13><10>

2.12- Trailer: %<0>

2.23- Skip lines that contain: %

2.31- Automatic timeout: 7

Receiving Options

3.11- Program identifier 1: (PGM=

3.12- Program Identifier 2:

3.21- Receive timeout: 3

3.31- Ignore data before first end-of-block: True

3.32- Ignore data after last end-of-block: True

Remote Commands

4.02- Request for file command: GET-

4.03- Request for file command (drip feed): DNC-

4:11- Request to save command: PUT-

Additional Notes

Outputting CNC Programs:

PRGM MGMT. --> SAVE
SELECT LINE
CLICK START

Inputting CNC Programs:

TO LOAD TO MEMORY:
PRGM MGMT. --> LOAD
SELECT LINE
CLICK START

TO LOAD TO DIRECTORY:
PRGM MGMT. --> TRANSFER
FROM LINE
TO STORE
HIGHLIGHT PROGRAM TO OVERWRITE
CLICK START

TO ISSUE REMOTE REQUEST:
PRGM MGMT. --> TERMINAL
KEY IN "GET-XXXXXXXX" THEN HIT ENTER
IF YOU MAKE A MISTAKE, NO BACKSPACE
JUST HIT ENTER AND TRY AGAIN
NOW HIT THE ESCAPE KEY TO EITHER LOAD OR TRANSFER

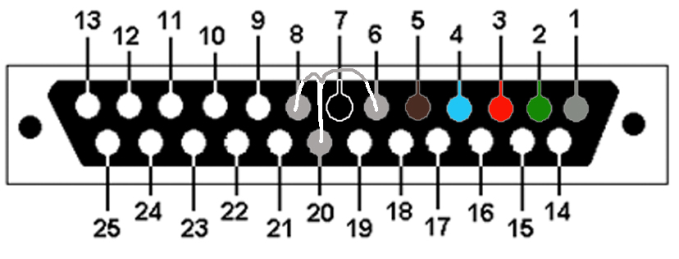

Wiring Diagram

Pinout includes RTS/CTS Handshaking

	DB-9 com port	Wire color	DB-25 CNC	Jumper?
	(Disconnected)	Shield	1
	2 (Receive Data)	Green	2 (Transmit Data)
	3 (Transmit Data)	Red	3 (Receive Data)
	5 (Signal Ground)	Black	7 (Signal Ground)
	7 (RTS)	Brown	5 (CTS)
	8 (CTS)	Blue	4 (RTS)
			6 (DSR) 8 (DCD) 20 (DTR)	JUMPER
