Cincinnati 850Sx configuration document

Cincinnati 850Sx configuration document



CNC Configuration Sheet

Cincinnati 850

CNC Parameters:


Machine Parameters for Dataline:

Baud Rate = 4800

Parity = NONE

Data Bits = 8

Stop Bits = 1

Protocol Level = 1


FactoryWiz DNC Settings:

Basic Communication

1.01- Port Type: Standard

1.11- Baud: 4800

1.12- Data Bits: 8

1.13- ASCII None

1.14- Stop Bits: 1

1.15- Handshake: RTS/CTS

1.16- Handshake Send Signal: CTS


Sending Options

2.11- Leader: <0>%<13><10>

2.12- Trailer: %<0>

2.23- Skip lines that contain: %

2.31- Automatic timeout: 7


Receiving Options

3.11- Program identifier 1: (PGM=

3.12- Program Identifier 2:

3.21- Receive timeout: 3

3.31- Ignore data before first end-of-block: True

3.32- Ignore data after last end-of-block: True


Remote Commands

4.02- Request for file command: GET-

4.03- Request for file command (drip feed): DNC-

4:11- Request to save command: PUT-


Additional Notes:


Outputting CNC Programs:

PRGM MGMT. --> SAVE
SELECT LINE
CLICK START



Inputting CNC Programs:


TO LOAD TO MEMORY:
PRGM MGMT. --> LOAD
SELECT LINE
CLICK START

TO LOAD TO DIRECTORY:
PRGM MGMT. --> TRANSFER
FROM LINE
TO STORE
HIGHLIGHT PROGRAM TO OVERWRITE
CLICK START

TO ISSUE REMOTE REQUEST:
PRGM MGMT. --> TERMINAL
KEY IN "GET-XXXXXXXX" THEN HIT ENTER
IF YOU MAKE A MISTAKE, NO BACKSPACE
JUST HIT ENTER AND TRY AGAIN
NOW HIT THE ESCAPE KEY TO EITHER LOAD OR TRANSFER

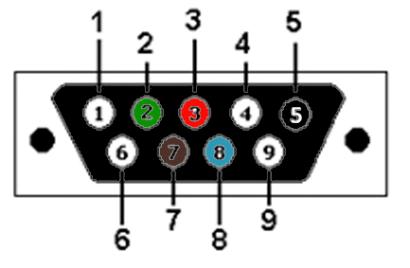

Wiring Diagram:

Pinout includes RTS/CTS Handshaking


DB-9 com port

Wire color

DB-25 CNC

Jumper?


(Disconnected)

Shield

1



2 (Receive Data)

Green

2 (Transmit Data)



3 (Transmit Data)

Red

3 (Receive Data)



5 (Signal Ground)

Black

7 (Signal Ground)



7 (RTS)

Brown

5 (CTS)



8 (CTS)

Blue

4 (RTS)





6 (DSR)

8 (DCD)

20 (DTR)

JUMPER
