Cable Diagrams and Descriptions with Pinouts

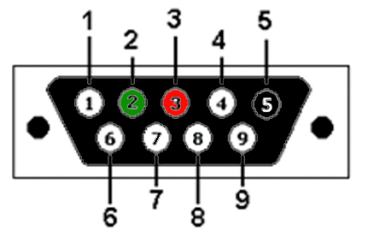

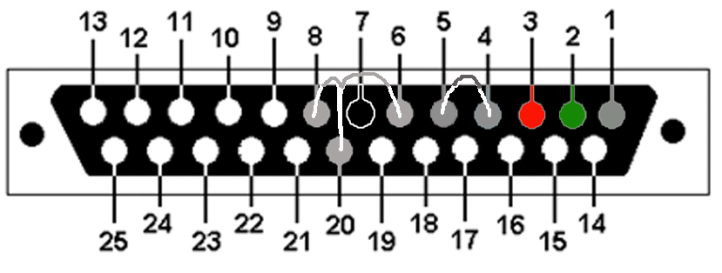

Pinout 1: No Handshake
|
Jumper? |
DB-9 PC (Female) |
Wire |
DB-25 CNC (Male) |
Jumper? |
|
|
(Disconnected) |
Shield |
1 |
|
|
|
2 (Receive Data) |
Green |
2 (Transmit Data) |
|
|
|
3 (Transmit Data) |
Red |
3 (Receive Data) |
|
|
|
5 (Signal Ground) |
Black |
7 (Signal Ground) |
|
|
|
|
|
4 (RTS) 5 (CTS) |
JUMPER |
|
|
|
|
6 (DSR) 8 (DCD) 20 (DTR) |
JUMPER |

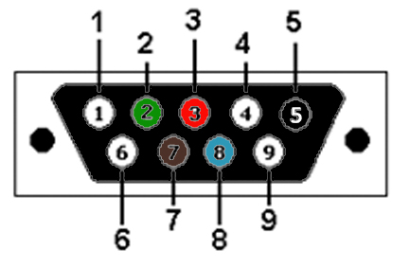

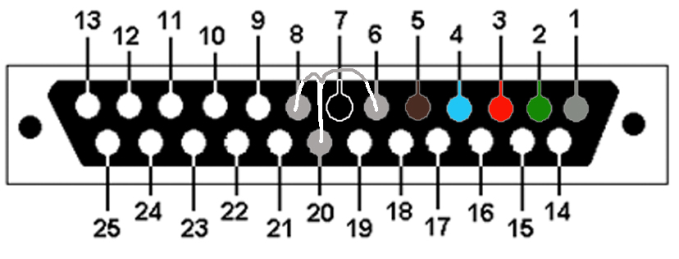

Pinout 2: Partial Handshake (RTS/CTS Only)
|
Jumper? |
DB-9 PC |
Wire |
DB-25 CNC |
Jumper? |
|
|
(Disconnected) |
Shield |
1 |
|
|
|
2 (Receive Data) |
Green |
2 (Transmit Data) |
|
|
|
3 (Transmit Data) |
Red |
3 (Receive Data) |
|
|
|
5 (Signal Ground) |
Black |
7 (Signal Ground) |
|
|
|
7 (RTS) |
Brown |
5 (CTS) |
|
|
|
8 (CTS) |
Blue |
4 (RTS) |
|
|
|
|
|
6 (DSR) 8 (DCD) 20 (DTR) |
JUMPER |

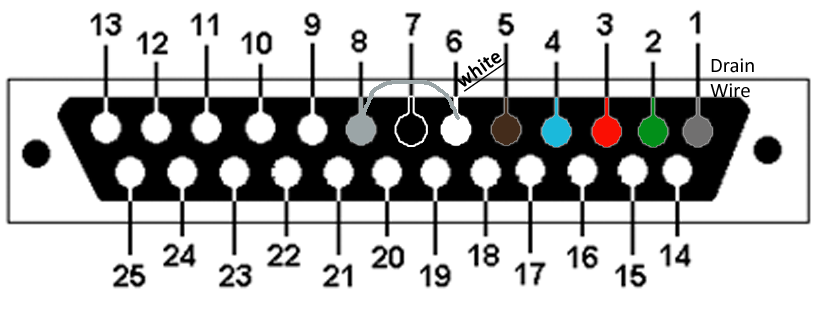

Pinout 3A: Full Handshake (RTS/CTS & DTR)
|
Jumper? |
DB-9 PC (Female) |
Wire |
DB-25 CNC (Male) |
Jumper? |
|
|
(Disconnected) |
Shield |
1 |
|
|
|
2 (Receive Data) |
Green |
2 (Transmit Data) |
|
|
|
3 (Transmit Data) |
Red |
3 (Receive Data) |
|
|
|
5 (Signal Ground) |
Black |
7 (Signal Ground) |
|
|
|
7 (RTS) |
Brown |
5 (CTS) |
|
|
|
8 (CTS) |
Blue |
4 (RTS) |
|
|
|
4 (DTR) |
White |
6 (DSR) 8 (DCD) |
JUMPER |

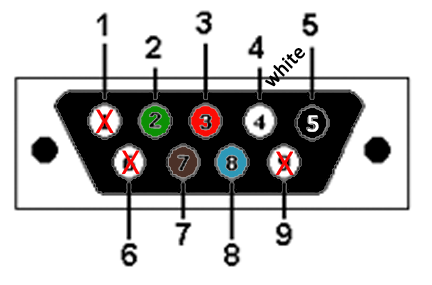

Pinout 3B: Full Handshake (RTS/CTS & DTR/DSR)
|
Jumper? |
DB-9 PC |
Wire |
DB-25 CNC |
Jumper? |
|
|
(Disconnected) |
Shield |
1 |
|
|
|
2 (Receive Data) |
Green |
2 (Transmit Data) |
|
|
|
3 (Transmit Data) |
Red |
3 (Receive Data) |
|
|
|
5 (Signal Ground) |
Black |
7 (Signal Ground) |
|
|
|
7 (RTS) |
Brown |
5 (CTS) |
|
|
|
8 (CTS) |
Blue |
4 (RTS) |
|
|
|
4 (DTR) |
White |
6 (DSR) 8 (DCD) |
JUMPER |
|
JUMPER |
1 (DCD) 6 (DSR) |
(OTHER COLOR) |
20 (DTR) |
|
Black Box’s pre-constructed cables use Pinout 3B. WE MAKE NO DISTINCTION BETWEEN PINOUTS 3A AND 3B. In our system, we never look at pins 1 or 6 on the PC side, so it makes no difference if we use that wire or not. With our standard 6 conductor cable we don’t have enough wires to connect it anyway, so we leave it out.
Here is when it is ok to use each cable (items in yellow are functional, but “less preferred”)
|
|
PC-DNC plus or PC-DNC Editor (Wait for XON) |
PC-DNC Editor (Send Now)* |
|
Any Fanuc with RS232 |
1,2,3 |
1,2 |
|
Fanuc 30i/31i/32i (any), 0i (D or later), 16i/18i/21i (B or later) with DR Signal Off problem even though 6-8-20 jumper is present |
3 |
NOT POSSIBLE |
|
Yasnac MX-1/LX-1, MX-2/LX-2, MX-3/LX-3, I80, J30 |
1,2,3 |
1,2,3*** |
|
Yasnac I80 or J30 (drip feeding) |
2,3 |
2,3*** |
|
Mazak |
1,2,3 |
1,2,3*** |
|
Mazak (drip feeding) |
2,3 |
2,3*** |
|
Siemens |
2,3 |
2,3*** |
|
Haas** |
1,2,3 |
1,2,3 |
|
Fadal** |
1,2,3 |
1,2,3 |
|
Mitsubishi |
1,2,3 |
1,2,3*** |
|
Mitsubishi (drip feeding) |
2,3 |
2,3*** |
|
Brother |
2,3 |
2,3*** |
|
Okuma |
1,2,3 |
1,2,3*** |
*Remember – you can’t use SEND NOW when drip feeding. This column refers only to transfer in/out of memory. When drip feeding, use Wait for XON or the DNC button in PC-DNC Editor.
** Haas and Fadal machines need only 2, 3, and 7. Pinout 1 doesn’t even need the 4/5 and 6/8/20 jumpers.
*** Parameter to disable DR signal check required to use pinout 3. These devices do NOT permit the use of pinout 3 with the SEND NOW button in their default state.
Optical Isolator Special Pigtail (for Fanuc)
|
Jumper? |
DB-25 Isolator |
Wire |
DB-25 CNC |
Jumper? |
|
|
(Disconnected) |
Shield |
(Disconnected) |
|
|
|
2 (Receive Data) |
Green |
2 (Transmit Data) |
|
|
|
3 (Transmit Data) |
Red |
3 (Receive Data) |
|
|
|
4 (RTS) |
Blue |
4 (RTS) |
|
|
|
5 (CTS) |
Brown |
5 (CTS) |
|
|
|
7 (Signal Ground) |
Black |
7 (Signal Ground) |
|
|
|
20 (POWER IN) |
White |
6 (DSR) 8 (DCD) 20 (DTR) |
JUMPER |
Isolator Side (DB 25 Male) CNC Side (DB25 Male)
Optical Isolator Cable Compatibility
|
|
Pinout 1 |
Pinout 2 |
Pinout 3A/B |
|
DB25 Straight Through |
Haas Only - Always requires power supply |
Haas Only – Usually ok, but sometimes requires power supply |
Haas Only |
|
Special Pigtail |
Always requires power supply |
Usually ok, but sometimes requires power supply |
All Machines |
