Matrix USB to Serial Data I/O

USB to Serial converter can be used with the Matrix CMT/Tape modes via Data I/O

• CMT Mode:


                      Load CMT Programs into the Matrix

                      Note: Can’t save CMTdata from Matrix to CMT

                      See Manual #H740S30030E Section 9-1-3

• Tape Mode:


                     Load, All loading, Punching, All Punching,

                     Comparing, All Comparing

Installing USB to Serial Drivers, Set Parameters & Com Port

1. Shut Down Mazatrol S/W


                  Correct way of Shutting Down Mazatrol Software

• Press the Diagnos menu key,  then Version and the right end menu key. Type “1131” and press input to get into the privileged mode.


• Move the mouse pointer to the bottom edge of the message indication column.  By pressing the right mouse button, a pull down menu will appear.

• Select Exit. See following example


1. Connect USB/Serial Cable

2. Windows will detect new Hardware after USB cable is connected.

3. Follow window prompts to install driver.


Parameters on Matrix to activate CMT/Tape Data I/O Menu Keys

5. Parameter F163 Bits 6 & 7

Bit 6 = Menu on the DATA I/O display (tape)

0: Hidden

1: Displayed

Bit 7 = Menu on the DATA I/O display (CMT)

0: Hidden

1: Displayed

6. Set Com Port to COM3

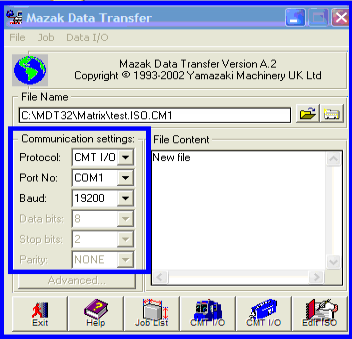

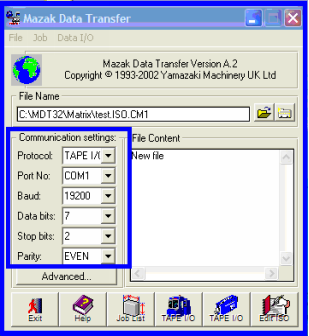

7. Example of MDT

   Communication   Settings
