Fanuc 0T Configuration Document

Fanuc 0T Configuration Document


CNC Parameters

(Phone camera) original settings before making modifications!

Setting screen:
Punch code- 1=ISO
TV CHECK=0 OFF

I/O=0 (for Channel 1)

Parameters screen:
0002 = 1xxxxxx0  (do not change values for x)

0552 = 10 (4800 baud rate)  9=2400, 8=1200 7=600 6=300

0553 = 10 (4800 baud rate)  9=2400, 8=1200 7=600 6=300


FactoryWiz DNC Settings

Basic Communication

1.01- Port Type: Standard

1.11- Baud: 4800

1.12- Data Bits: 7

1.13- ASCII Even

1.14- Stop Bits: 1

1.15- Handshake: XON/XOFF


Sending Options

2.11- Leader: %<10>

2.12- Trailer: %

2.23- Skip lines that contain: %

2.31- Automatic timeout: 7


Receiving Options

3.11- Program identifier 1: O

3.12- Program Identifier 2: :

3.21- Receive timeout: 3

3.31- Ignore data before first end-of-block: True

3.32- Ignore data after last end-of-block: True


Remote Commands

4.02- Request for file command: T-

4.03- Request for file command (drip feed): D-

4:11- Request to save command: S-


Additional Notes

Changing CNC Parameters:



Outputting CNC Programs:


To output a program, set the dial on the machine to EDIT mode. Press PROGRAM softkey, followed by Oxxxx, then press OUTPUT START.

Inputting CNC Programs:


To input a program, set the dial on the machine to EDIT mode. Press PROGRAM softkey, followed by the INPUT key.

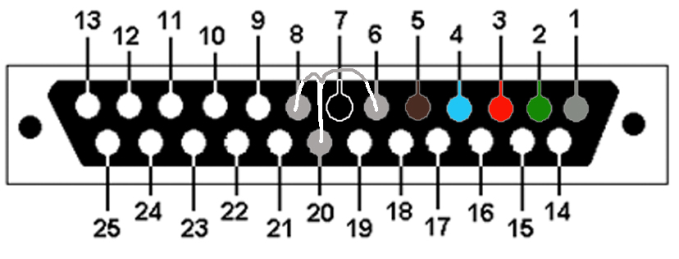

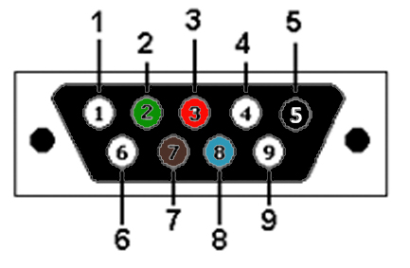

Wiring Diagram

Pinout includes RTS/CTS Handshaking


DB-9 com port

Wire color

DB-25 CNC

Jumper?


(Disconnected)

Shield

1



2 (Receive Data)

Green

2 (Transmit Data)



3 (Transmit Data)

Red

3 (Receive Data)



5 (Signal Ground)

Black

7 (Signal Ground)



7 (RTS)

Brown

5 (CTS)



8 (CTS)

Blue

4 (RTS)





6 (DSR)

8 (DCD)

20 (DTR)

JUMPER
