Yasnac MX2-LX2 Configuration
CNC Parameters
To set parameters:
Change parameter 6219 to 1. (Enable)
Press PRM.
Cursor down to parameter, press INSRT.
Cursor across to desired bit.
Press WR to toggle bit value.
Press INSRT.
When complete, return parameter 6219 to 0.
Power cycle the control to make changes permanent.
Parameter Bits from Left to Right: D7, D6, D5, D4, D3, D2, D1, D0
6000 D7 = 1 Outputs ISO data (0=EIA)
6003 D7 = 1 Tape Device uses COMM Module (0=PTR)
6003 D6 = 0 Device Designation RS232C (1=RS422)
6003 D5, D4 = 0,1 Output port number is RS232 #1 (1,0 = RS232 #2)
6003 D3 = 0 EOB is set to LF only (1=CRLF)
6003 D1, D0 = 0, 1 Input port number is RS232 #1 (1,0 = RS232 #2)
6022 D1, D0 = 0,0 Parity enabled for Input/Output
6026 are Input parameters for RS232 #1
6027 are Input parameters for RS232 #2
6028 are Output parameters for RS232 #1
6029 are Output parameters for RS232 #2
D5 = 0 Control codes are used (1=Not used)
D4 = 0 Stop Bits set to 1 (1=2 stop Bits)
D3->D0 sets Baud Rate
1010 = 9600
1001 = 4800
0111 = 1200
0110 = 600
0101 = 300
0010 = 110
FactoryWiz DNC Settings
Basic Communication
1.01- Port Type: Standard
1.11- Baud: 9600
1.12- Data Bits: 7
1.13- ASCII Even
1.14- Stop Bits: 1
1.15- Handshake: XON/XOFF
Sending Options
2.11- Leader: %<10>
2.12- Trailer: %
2.23- Skip lines that contain: %
2.31- Automatic timeout: 7
Receiving Options
3.11- Program identifier 1: O
3.21- Receive timeout: 3
3.31- Ignore data before first end-of-block: True
3.32- Ignore data after last end-of-block: True
Remote Commands
4.02- Request for file command: GET-
4.03- Request for file command (drip feed): DNC-
4:11- Request to save command: PUT-
Additional Notes
Outputting CNC Programs
Set mode switch to EDIT.
Press PROG button.
Press Reset.
Type in O number to output. (O1234)
Press OUT.
Inputting CNC Programs
Queue program thru FactoryWiz DNC Client.
Set mode switch to EDIT.
Press PROG button.
Press Reset.
Type in program number, such as 1234
Press IN.

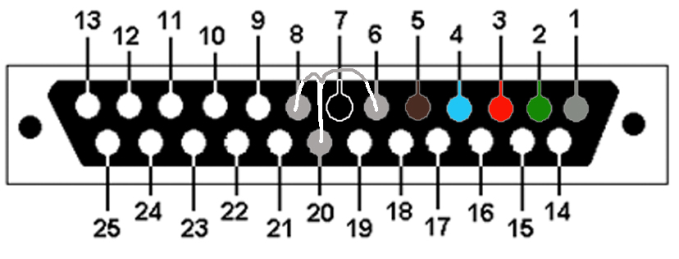

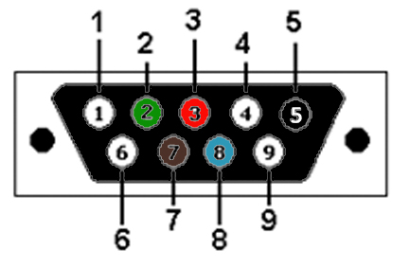

Wiring Diagram
Pinout includes RTS/CTS Handshaking
DB-9 com port | Wire color | DB-25 CNC | Jumper? | |
(Disconnected) | Shield | 1 | ||
2 (Receive Data) | Green | 2 (Transmit Data) | ||
3 (Transmit Data) | Red | 3 (Receive Data) | ||
5 (Signal Ground) | Black | 7 (Signal Ground) | ||
7 (RTS) | Brown | 5 (CTS) | ||
8 (CTS) | Blue | 4 (RTS) | ||
6 (DSR) 8 (DCD) 20 (DTR) | JUMPER |
