Complete Mazak M2 CNC Configuration Guide

Mazak M2 Configuration Document


CNC Parameters

OP2 - BIT 0=1 (ISO) (leave other bits alone)
OP3 - 109
OP4 - 70
OP15 - 0
OP16 - 0
OP20 - 0 (No leader)
OP21 - 0 (No space before programs)
OP22 - 0 (No trailer)
OP23 - 16 (4800 input baud)
OP24 - 16 (4800 output baud)


FactoryWiz DNC Settings

Basic Communication

1.01- Port Type: Standard

1.11- Baud: 4800

1.12- Data Bits: 7

1.13- ASCII Even

1.14- Stop Bits: 2

1.15- Handshake: XON/XOFF


Sending Options

2.11- Leader: %<10>

2.12- Trailer: %

2.23- Skip lines that contain: %

2.31- Automatic timeout: 7


Receiving Options

3.11- Program identifier 1: O

3.12- Program Identifier 2:

3.21- Receive timeout: 3

3.31- Ignore data before first end-of-block: True

3.32- Ignore data after last end-of-block: True


Remote Commands

4.02- Request for file command: T-

4:11- Request to save command: S-


Mazatrol Options:

5.01- CMT protocol enabled: TRUE

5.02- CMT controller type: M2

5:11- CMT file extension:  .CMT

5.12- CMT filename to use when receiving:  Program number

5:14- CMT file suffix:  .CMT


Additional Notes


Changing CNC Parameters:

1 Press LEFT PAGE key
2 Press PARAM softkey
3 Press any white key (MDI, etc)
4 Cursor to parameter
5 Key in new value
6 Press INPUT
7 POWER DOWN CNC


Outputting CNC Programs:

Outputting EIA programs:
1. Press PROGRAM softkey.
2. Press PROGRAM FILE softkey.

3. Press TAPE I/O softkey.
4. Press PUNCH NC->TAPE softkey.
5. Key in program # (work number)
6. Press INPUT.
7. Repeat Steps 5&6 for additional programs.
8. Press START.


Outputting Mazatrol programs:
1. Press PROGRAM softkey.
2. Press PROGRAM FILE softkey.

3. Press CMT I/O softkey.
4. Press SAVE CMT softkey.
5. Key in program # (work number)
6. Press INPUT.
7. Repeat Steps 5&6 for additional programs.
8. Press START


Inputting CNC Programs:

Inputting EIA programs:
1. Press PROGRAM softkey.
2. Press PROGRAM FILE softkey.

3. Press TAPE I/O softkey.
4. Press ALL LOAD TAPE->NC softkey.
5. Press START.


Outputting Mazatrol programs:
1. Press PROGRAM softkey.
2. Press PROGRAM FILE softkey.

3. Press CMT I/O softkey.
4. Press LOAD CMT softkey.
5. Key in program # (work number)
6. Press INPUT.
7. Repeat Steps 5&6 for additional programs.
8. Press START.

NOTE1: To avoid keying in program #'s for Mazatrol input, use the CMT CONTENTS function to load file contents onto the screen. Then select LOAD NC <- CMT and click START. Values will remain filled in for you.



Turning on the EIA option:

1. Press PAGE DOWN while pressing F3

2. Locate parameter Y03.

3. Set bit 1 = 1 (tape in is on)

4. Set bit 2 = 1 (tape out is on)

5. Set bit 3 = 1 (EIA on)

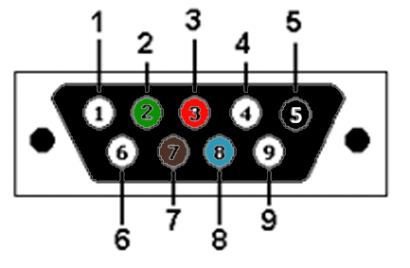

Wiring Diagram

Pinout includes RTS/CTS Handshaking


DB-9 com port

Wire color

DB-25 CNC

Jumper?


(Disconnected)

Shield

1



2 (Receive Data)

Green

2 (Transmit Data)



3 (Transmit Data)

Red

3 (Receive Data)



5 (Signal Ground)

Black

7 (Signal Ground)



7 (RTS)

Brown

5 (CTS)



8 (CTS)

Blue

4 (RTS)





6 (DSR)

8 (DCD)

20 (DTR)

JUMPER
