CNC Parameters

Setting screen:
Punch code- ISO
TV CHECK=0 OFF

Under Service page:
0000 =  xxx01000 (ISO)

0020 = 2 (Input device Foreground)

0021 = 2 (Output device Foreground)

0022 = 2 (Input device Background)

0023 = 2 (Output device Background)

5001 to 1 (Device Select)
5002 to 2 (RS232 Device Select)
5110 to 3 (Device type DC Codes used)
5111 to 1 (1 stop bit)
5112 to 10 (4800 baud)  11=9600, 9=2400, 8=1200 7=600 6=300

FactoryWiz DNC Settings

Basic Communication

1.01- Port Type: Standard

1.11- Baud: 4800

1.12- Data Bits: 7

1.13- ASCII Even

1.14- Stop Bits: 1

1.15- Handshake: XON/XOFF

Sending Options

2.11- Leader: %<10>

2.12- Trailer: %

2.23- Skip lines that contain: %

2.31- Automatic timeout: 7

Receiving Options

3.11- Program identifier 1: :

3.12- Program Identifier 2: O

3.21- Receive timeout: 3

3.31- Ignore data before first end-of-block: True

3.32- Ignore data after last end-of-block: True

Remote Commands

4.02- Request for file command: GET-

4.03- Request for file command (drip feed): DNC-

4:11- Request to save command: PUT-

Additional Notes

Changing CNC Parameters:

System (Param) screen:
To set parameters, move dial to MDI mode on machine.
Press SETTINGS key. Change PWE (#8000) to 1. The CNC will alarm.

Outputting CNC Programs:

To output a program, set the CNC to "edit" mode. Press the PROG key on the control panel.  Use the right arrow (Page) key until PUNCH appears. Press PUNCH, then Press THIS.

Inputting CNC Programs:

To input a program, set the CNC to "edit" mode. Press the PROG key on the control panel. Use the right arrow(Page)keys until READ appears. Press READ, then press ALL.

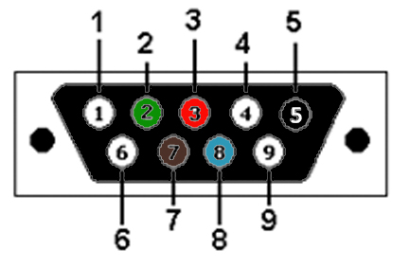

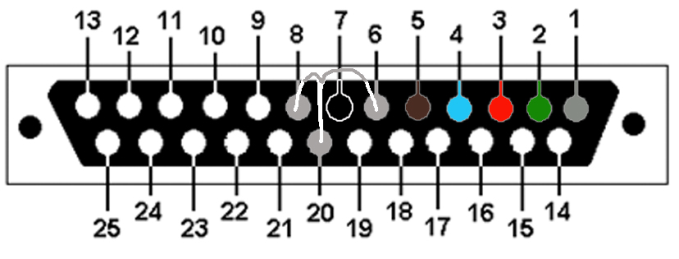

Wiring Diagram

Pinout includes RTS/CTS Handshaking

	DB-9 com port	Wire color	DB-25 CNC	Jumper?
	(Disconnected)	Shield	1
	2 (Receive Data)	Green	2 (Transmit Data)
	3 (Transmit Data)	Red	3 (Receive Data)
	5 (Signal Ground)	Black	7 (Signal Ground)
	7 (RTS)	Brown	5 (CTS)
	8 (CTS)	Blue	4 (RTS)
			6 (DSR) 8 (DCD) 20 (DTR)	JUMPER
