Adam 6051 Troubleshooting

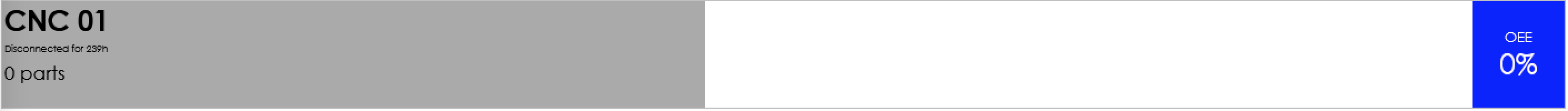

Machine showing disconnected in FactoryWiz

When you have a machine showing as disconnected in FactoryWiz.  For IT technical staff only.

1. Verify the FactoryWiz machine settings are correct:

1. IP is good

2. Machine type is ADAM

3. You have a license / correct license allocation

4. The service RYM ADAM is running

2. Check the ping of the IP address:

1. If fail:

1. Check ADAM is powered on

2. Check cable is good to the ADAM (check RJ45 is ok)

3. Connect a laptop to the cable to test

4. Replace cable

2. If pass:

1. Use the ADAM Apax utility to connect to the ADAM.

1. If you cannot connect to the ADAM check the IP address is for this device and not a duplicate.

2. If you can connect to this device using the ADAM Apax utility and the machine is still showing as offline, please contact us.


Download the ADAM Apax Utility: Download

Video on how to use the ADAM Apax Utility: https://vimeo.com/414855088
